Face and Fingerprint Terminal

Face and Fingerprint Terminal

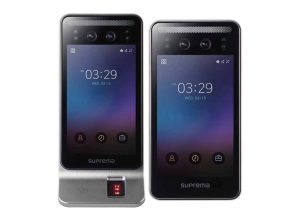

Suprema FaceStation F2 is a fusion multimodal terminal with unmatched face recognition performance. Experience the exceptional authentication accuracy and anti-spoofing performance achieved by Suprema’s unique Fusion technology.

Feature List

  • Face Authentication
    Register up to 50,000 users for face authentication
  • Mobile Access
    Supports NFC and BLE based Mobile Access Cards
  • Fingerprint Authentication
    Register up to 100,000 users for fingerprints authentication
  • Card Reading
    Supports dual frequency access cards
    Template-on-Card allows authenticaion via biometric data stored in cards


Model: FSF2-DB

Biometric Face
RF Option 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa
RF Read Range* EM/MIFARE/DESFire : 50 mm (2"), FeliCa: 30 mm (1.2")
* RF read range will vary depending on the installation environment
Mobile NFC, BLE
CPU 1.8 GHz Dual Core + 1.4 GHz Quad Core
Memory 16GB Flash + 2GB RAM
LCD Type 7” IPS color LCD
LCD Resolution 800 x 1280 pixels
Sound 16bit
Operating Temperature -20°C ~ 50°C (-68°F ~ 122°F)
Operating Humidity 0% ~ 80%, non-condensing
Dimension (W x H x D) 119.8mm x 223mm x 23.5mm (4.7" x 8.8" x 0.9")
Weight - Device 585g
Weight - Bracket
(including washer and bolt)
IP Rating IP65
Certificates CE, FCC, KC, RoHS, REACH, WEEE
Recognition Distance 0.5m ~ 1.3m (19.7" ~ 51.2")
Recognition Height 140cm ~ 190cm (55.1" ~ 74.8")
Matching Speed Less than 0.5 sec
Live Face Detection(Anti-Spoofing) Supported
Image Dimension N/A
Resolution N/A
Template N/A
Extractor / Matcher N/A
Sensor Certificates N/A
Live Fingerprint Detection N/A
Max. User (1:1)
* Based on one face/fingerprint enrollment per user
Max. User (1:N)
* Based on one face/fingerprint enrollment per user
Face: 50,000
Max. Text Log 5,000,000
Max. Image Log 50,000
Ethernet 10/100 Mbps, auto MDI/MDIX
RS-485 1ch Host or Slave (Selectable)
Wiegand 1ch Input or Output (Selectable)
TTL Input 2ch Inputs
Relay 1 Relay
USB USB 2.0 (Host)
Tamper Supported
Power Voltage: DC 12V ~ DC 24V Current: Max. 2.5 A
* Use a 24V/2.5A adapter.
Must follow the product manual when using a 12V adapter.
